Product Overview

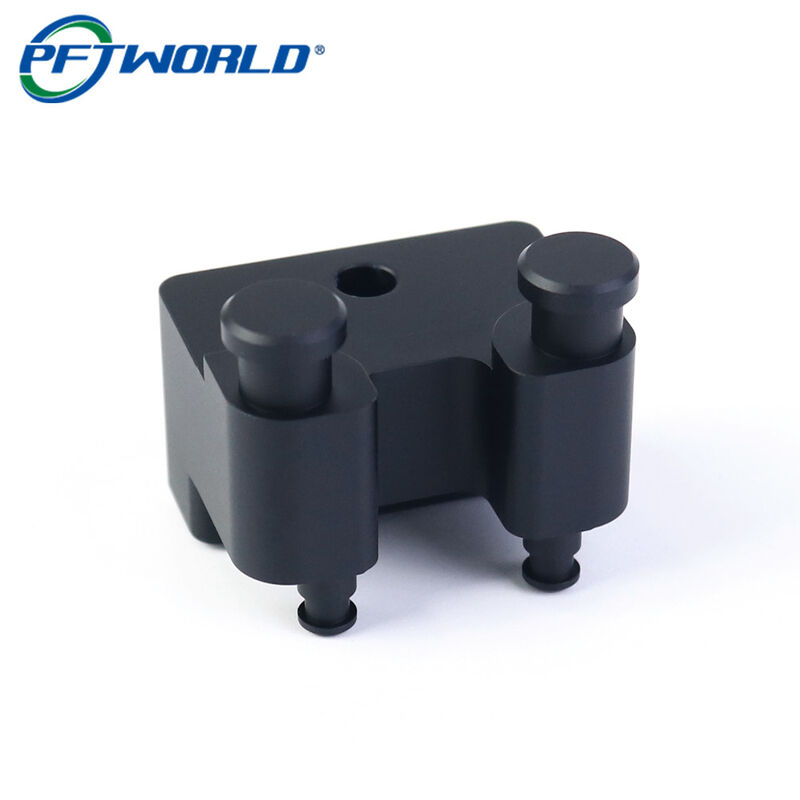

Precision CNC Aluminum Positioning Fixture Manufacturing
This custom positioning fixture is manufactured from premium 6061 aluminum alloy through precision CNC milling processes.
The component features a compact structural design with integrated locating posts, mounting holes, and machined support surfaces. These precision features help ensure stable positioning and repeatable assembly performance in industrial applications.
After machining, the part receives sandblasting and black anodizing treatment, providing a uniform matte appearance while improving surface protection and durability.
Designed for OEM customers, this aluminum fixture can be customized according to 3D models, engineering drawings, or specific application requirements.
Main Features
Why This CNC Aluminum Fixture Is Different
High Precision CNC Milling
Manufactured using advanced CNC machining equipment to achieve accurate dimensions and consistent repeatability.
Lightweight 6061 Aluminum Construction
6061 aluminum provides excellent machinability, strength-to-weight ratio, and corrosion resistance, making it ideal for precision mechanical components.
Integrated Positioning Structure
Machined locating posts and mounting surfaces improve assembly accuracy and reduce installation errors.
Durable Black Anodized Surface
The anodized finish enhances wear resistance and provides a professional industrial appearance.
Fully Customized Manufacturing
Dimensions, hole locations, tolerances, and surface finishes can be modified based on customer drawings.
Technical Specifications
| Specification |
Details |
| Product Name |
CNC Aluminum Positioning Fixture |
| Material |
Aluminum 6061 |
| Machining Process |
CNC Milling + Drilling |
| Surface Treatment |
Sandblasting + Black Anodizing |
| Surface Color |
Matte Black |
| Precision |
±0.01mm depending on requirements |
| Manufacturing Type |
OEM Custom Machining |
| MOQ |
Prototype / Small Batch Available |
| File Format |
STEP / IGES / X_T / DWG / PDF |
Manufacturing Process
From CAD Drawing to Finished Component
1. Drawing Analysis
Our engineering team reviews the 3D model and identifies machining requirements.
2. CNC Machining
High-speed CNC milling machines create the fixture body, holes, and positioning features.
3. Surface Finishing
Parts are cleaned, deburred, sandblasted, and anodized according to customer requirements.
4. Quality Inspection
Critical dimensions and appearance are inspected before shipment.
Applications
Typical Industrial Uses
This CNC aluminum positioning fixture can be used in:
- Automation equipment
- Assembly machines
- Inspection fixtures
- Electronic manufacturing equipment
- Mechanical positioning systems
- Custom production tooling
- Industrial test equipment
Factory Capability
Your Custom CNC Machining Partner
Shenzhen Perfect Precision Product Co., Ltd. specializes in custom CNC machined components for global OEM customers. The factory supports CNC milling, turning, multi-axis machining, and surface finishing solutions for aluminum, stainless steel, copper, titanium, and engineering plastics.
Our production advantages include:
- CNC milling and turning capability
- Prototype to low-volume production
- Aluminum precision machining experience
- Surface treatment coordination
- Engineering support for manufacturability improvement
- Dimensional inspection before delivery
