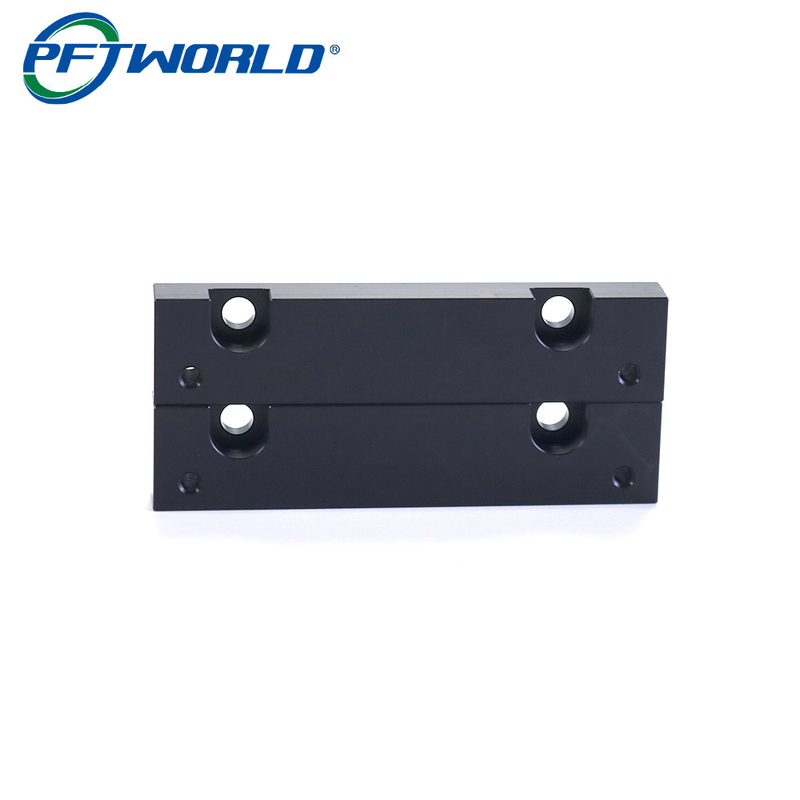

CNC Turning Milling Composite Aluminum Parts with High Product Concentricity
Turning Milling Composite Characteristics:
1. The turning and milling compound machine tool perfectly integrates the CNC lathe with the multi-sided machine tool, and has the functions of CNC turning and multi-sided forming chip cutting. It can complete many processes such as turning an outer circle, drilling, cutting, and multi-sided turning at one time. (product concentricity is high, and one machine is multi-purpose).
2. The turning and milling compound machine tool adopts the sand turning process of connecting the bed body and the bed foot, and adopts the roller imported line rail and lead screw, so it has good seismic resistance and strong cutting force.
3. The turning and milling compound machine tool can realize the spindle positioning according to different products and can cut arbitrary polygon processing (it can simultaneously complete irregular shapes such as three, four, five, six, seven, etc.)
4. If the turning and milling compound machine tool does not use the function of turning polygon, it can also be used as a high-precision CNC lathe.
Design Consideration for Milling:
When designing parts to be CNC milled, there are several tips to keep in mind:
(1)CNC milling machines are capable of precision so try to use this to your advantage
(2)Avoid deep pockets which are difficult to machine
(3)Sharp inside corners are often difficult so consider using a radius
(4)Apply chamfers to the top edges to reduce sharpness and improve appearance.
(5)Apply filters to the bottom of pockets to reduce the possibility of stress fractures if the component is under stress.
(6)Thin walls and other flimsy shapes can be difficult to machine as they may not hold up against the pressure of the cutting action.
(7)Try to create shapes that do not have complex curves in more than one axis – as it may be difficult to hold during machining.
In this case, you can contact:
1. When you want to order high-precision aluminum parts.
2. When you want to order 100% quality guaranteed products.
3. When you want to get a one-stop service.
4. When you want to get perfect after-sales guarantee service.
Specification:
| OEM Milling Aluminum Black Oxidation Factory Generation Processing Services | |
| Nature of Business | privately-owned |
| Place of Origin | Guangdong |
| Available Drawing Format | STP, PDF,2D Drawing,3D Drawing, JPG, JPEG, etc |
|
|
Automotive industry |
| Factory | More than 3000m² |
| MOQ | 1 |
| Sample | Available within 7 days, sample cost can return |
Attention:
The pictures and prices shown are just for the exhibition of our production. Any more details you want to know are welcome to contact us. We will send you pictures of products more suitable for your inquiry for better reference and then we will quote you. If you are interested, please feel free to contact me: at sales04@7-swords.com
FAQ:
1. Q: Will my design drawings be safe when you get them?
A: Yes, we will not publish your design to a third party unless your permission is obtained. We can sign the NDA before you send the drawings.
2. Q: What is the delivery time?
A: 7-15 working days depending on drawings and quantity.
3. Q: Is there any risk of disclosure of the drawings and related information we sent to you?
A: You can be assured that any drawings and private information not approved by the customer will be kept strictly confidential and there will be no third party to know.
4. Q: Why choose us?
A: competitive price, fast reply, short delivery time, rich experience over all different kinds of parts in various industries.
Our products are sold all over the world, you can rest assured.
