Anodizing Painting Polished CNC Brass Parts Copper Precision CNC Machining Parts

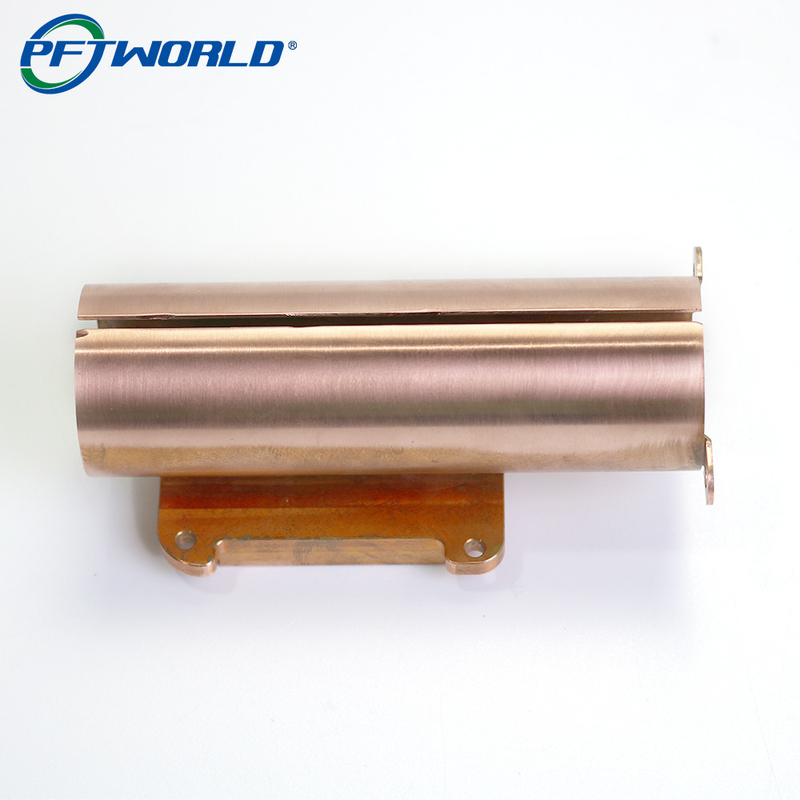

Precision CNC brass parts, machined and polished
Quick Details:
1. Keywords: CNC brass parts
2. Process: CNC processing
3. Color: gold
4. Origin: Shenzhen, China
5. Use: widely used
6. Drawing format: 2D/(PDF/CAD) 3D (IGES/STEP)
7. Equipment: CNC machining center
8. Delivery time: 1-2 weeks

What is the right angle groove milling process in precision parts processing
In precision parts processing, right angle groove is composed of three planes, and its section shape is three straight lines, and adjacent straight lines are perpendicular to each other. Right angle groove is generally divided into three forms: closed, semi closed and open right angle groove. The right angle groove can be distributed on the plane and cylindrical surface. The more classical right angle groove is the keyway, which can be divided into ordinary flat keyway and semicircular keyway. The milling process characteristics of right angle groove are as follows:
1. Use fixed diameter or fixed width milling cutter (such as keyway milling cutter, semicircular keyway milling cutter, disc slot milling cutter, etc.) for processing to control the groove width size with high accuracy, such as the shaft keyway matched with flat key and semicircular key, open right angle groove with matching accuracy requirements, etc.
2. In the machining of precision parts, different tool setting methods are usually adopted for the symmetrical position of the keyway on the shaft according to the different accuracy levels. For keyways with high symmetry requirements, the indicator ring table method is used to find the relative position between the workpiece axis and the tool axis or the middle section of the disc milling cutter. Keyways with low symmetry requirements can be processed by the tool alignment method with the cutting mark.
3. The machining of the keyway on the shaft usually adopts V-shaped block for positioning, or the indexing head self centering chuck is used for clamping to ensure the symmetry of the workpiece and other main machining accuracy requirements.

Specification:

FAQ:
1. Where is your factory?
We are located in Shenzhen, China.
2. What quotation do you need to provide?
Please send us the drawings or samples of your products. The following details shall be included: drawings/quantities/materials/other requirements
3. How about the packaging?
Available as standard or customized.
4. If you benefit, will my drawings be disclosed?
No, we pay great attention to protecting the privacy of customers' drawings. If necessary, we can also sign NDA.
5. What is the lead time of mass production?
Frankly speaking, it depends on the order quantity. If you don't need tools, it usually takes 7-15 days after your deposit
