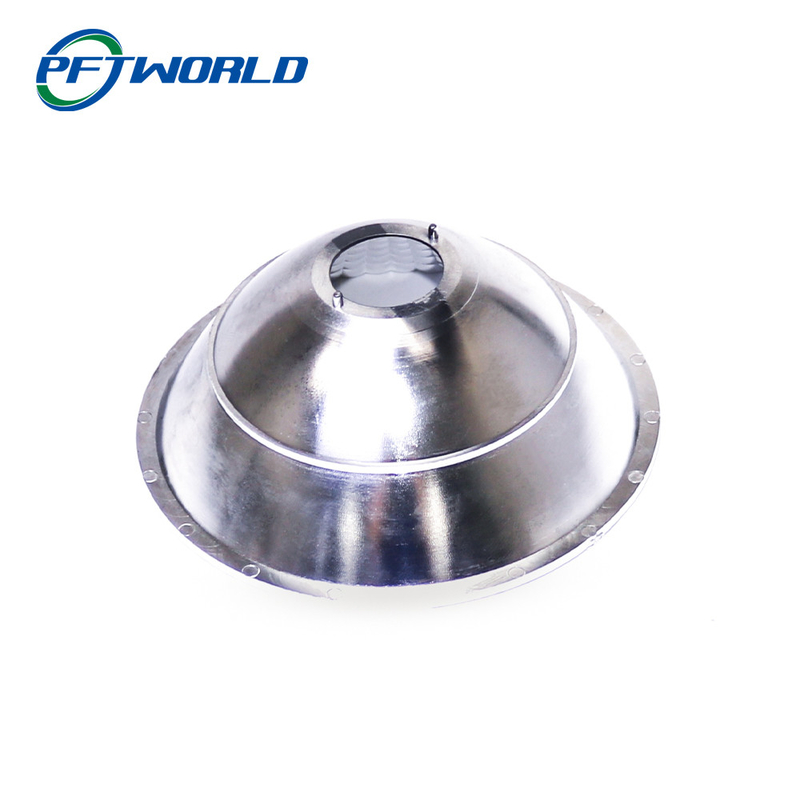

Silver Reflective Cup, Strong Focusing Effect, Customized Reflective Cup
If you’ve ever wondered how high-powered flashlights, medical devices, or stage lighting get such intense, focused beams, the answer often lies in a small but critical component—the silver reflective cup. These precision-engineered reflectors don’t just bounce light; they shape and amplify it with incredible efficiency.
Why Silver? The Science Behind Ultra-High Reflectivity
Not all reflective surfaces are equal. Here’s why silver dominates:
| Material |
Reflectivity (%) |
Best For |
| Silver |
95-98% (Visible light) |
High-precision optics, medical devices |
| Aluminum |
85-92% |
Cost-effective general use |
| Gold |
~98% (Infrared) |
Laser & thermal applications |
| Dielectric Coatings |
99%+ (Narrow bands) |
Specialty lasers, scientific instruments |
Key Advantages of Silver:
- Highest reflectivity for visible light
- Excellent thermal conductivity (dissipates heat from LEDs/lasers)
- Can be polished to mirror finish for maximum efficiency
How Reflective Cups Create a Strong Focusing Effect
A well-designed reflector does more than just bounce light—it controls beam angle, intensity, and uniformity. Here’s how:
1. Parabolic vs. Elliptical Geometry
- Parabolic cups create a collimated (parallel) beam (think spotlights).
- Elliptical cups focus light to a tight point (used in dental curing lights, fiber optics).
2. Surface Precision Matters
Even microscopic imperfections scatter light. The best cups have:
✔ Surface roughness <0.1μm (like a mirror)
✔ Precision-formed curvature (CNC-machined or electroformed)
3. Customizable for Any Application
- LED lighting – Wide vs. narrow beam control
- Medical devices – UV or IR light focusing
- Automotive – Headlight reflectors for optimal road illumination
When Do You Need a Custom Reflective Cup?
Off-the-shelf reflectors work for simple needs, but go custom if you require:
- Non-standard sizes/shapes (e.g., miniaturized for medical tools)
- Extreme precision (±0.05mm tolerance for laser systems)
- Special coatings (Anti-tarnish, UV-enhanced, or IR-reflective)
- High-temperature resistance (For halogen or HID lamps)
Manufacturing Methods Compared
| Method |
Pros |
Cons |
| Electroforming |
Seamless, ultra-smooth |
Higher cost, limited to thinner designs |
| CNC Machining |
Precise, any shape |
More expensive for complex curves |
| Stamping |
Low cost, high volume |
Less precise, limited geometries |
| 3D Printing + Coating |
Rapid prototypes |
Lower reflectivity |
Pro Tip: For high-end applications, electroformed nickel-silver offers the best balance of precision and durability.
Industries That Rely on Precision Reflectors
- Medical – Endoscopes, laser surgery, dental curing
- Automotive – LED headlights, LiDAR sensors
- Entertainment – Stage lighting, film projectors
- Industrial – Barcode scanners, optical sensors
Final Thoughts
A well-designed silver reflective cup can turn a mediocre light source into a high-performance system. Whether you’re building surgical lasers, automotive lighting, or scientific instruments, the right reflector makes all the difference.
|
|
CNC Turning, CNC Milling, Laser Cutting, Bending, Spining, Wire Cutting, Stamping, Electric Discharge Machining (EDM), Injection Molding,3D Printing,Rapid Prototype,Moulds etc.
|
|
|
Aluminum: 2000 series, 6000 series, 7075, 5052, etc.
|
|
Stainlesss steel: SUS303, SUS304, SS316, SS316L, 17-4PH, etc.
|
|
Steel: 1214L/1215/1045/4140/SCM440/40CrMo, etc.
|
|
Brass: 260, C360, H59, H60, H62, H63, H65, H68, H70, Bronze, Copper
|
|
Titanium: Grade F1-F5
|
|
Plastic: Acetal/POM/PA/Nylon/PC/PMMA/PVC/PU/Acrylic/ABS/PTFE/PEEK etc.
|
|
|
Anodized, Bead Blasted, Silk Screen, PVD Plating, Zinc/Nickl/Chrome/Titanium Plating, Brushing, Painting, Powder Coated, Passivation, Electrophoresis, Electro Polishing, Knurl, Laser/Etch/Engrave etc.
|
|
|
±0.002 ~ ±0.005mm
|
|
|
Min Ra 0.1~3.2
|
|
CERTIFICATE
|
ISO9001:2015,AS9100D,ISO13485:2016,ISO45001:2018,IATF16949:2016,ISO14001:2015,ROSH,CE etc.
|
FAQ
1. Are you a manufacturer or a trading company?
We are a factory located in Shenzhen, China, with 20 years of rich experience,
covering 6000 square meters. Complete facilities, including 3D quality inspection equipment, ERP system and 40 machines. If necessary, we can provide you with material certificates, sample quality inspection and other reports.
2. How to get a quote?
Detailed drawings (PDF/STEP/IGS/DWG...), including quality, delivery date, materials, quality, quantity, surface treatment and other information.
3. Can I get a quotation without drawings?
Can your engineering team draw for my creativity? Of course, we are also glad to receive your samples, pictures or detailed size drafts for accurate quotation.
4. Can you provide samples before mass production?
Of course, the sample fee is necessary. If possible, it will be returned during mass production.
5. What is the delivery date?
Generally, the sample lasts for 1-2 weeks and the batch production lasts for 3-4 weeks.
6. How do you control quality?
(1) Material Inspection - Check material surfaces and approximate dimensions.
(2) First inspection of production - ensure
critical dimensions in mass production.
(3) Sampling inspection - check the quality before delivery to the warehouse.
(4) Preshipment inspection - 100% inspection by QC assistant before shipment.
7. After sales service team
If you have any problems after receiving the product, you can provide feedback through voice call, video conference, email, etc. within one month. Our team will provide you with solutions within a week.
