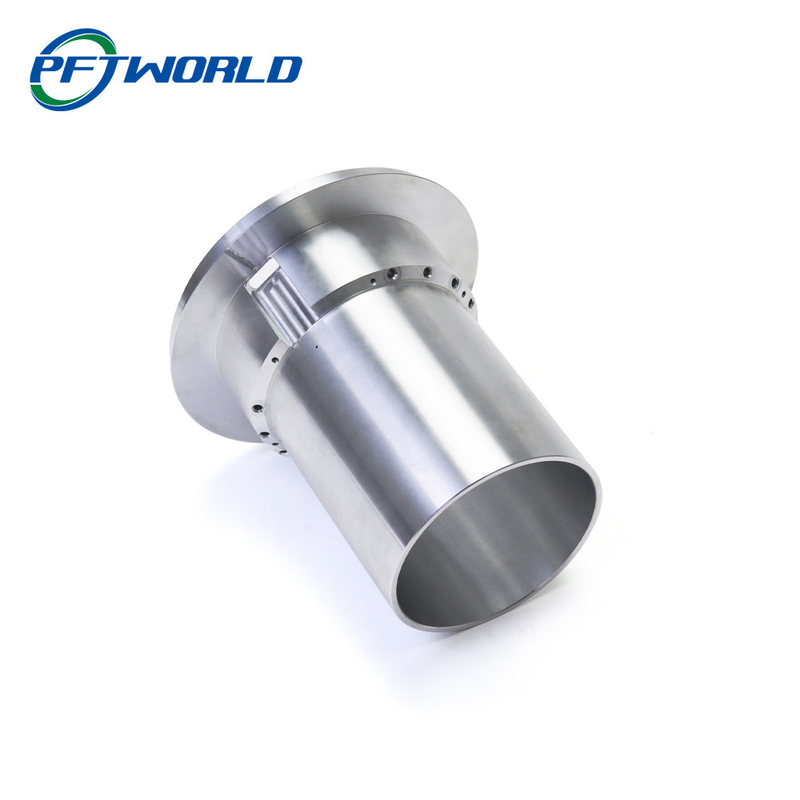

In the world of advanced manufacturing, high precision stainless steel parts are essential for a broad range of industries. From aerospace to medical devices, automotive to electronics, stainless steel parts often play a critical role in ensuring the durability, functionality, and performance of end products. Achieving high precision in these parts requires advanced machining technologies that can meet stringent tolerances and complex design requirements. One such technology that has revolutionized the manufacturing of high precision stainless steel parts is CNC machining, specifically 5-axis CNC machining.

What is High Precision Stainless Steel Machining?

High precision machining refers to manufacturing processes that produce parts with extremely tight tolerances and high accuracy. When it comes to stainless steel, the term high precision becomes even more significant, as stainless steel is known for its strength, durability, and resistance to corrosion—properties that are essential in many demanding applications. However, machining stainless steel can be challenging due to its hardness, toughness, and tendency to work harden. These factors require sophisticated machinery and cutting techniques to achieve precision.

Stainless steel parts are used in industries where performance and durability are critical. Common applications include:

• Aerospace: Components such as engine parts, fasteners, and structural elements.

• Medical Devices: Surgical instruments, implants, and housings for medical equipment.

• Automotive: Engine parts, exhaust systems, and structural components.

• Electronics: Housings, frames, and connectors that require both strength and aesthetic quality.

Given the material's complexity and the performance demands, achieving high precision in stainless steel parts is crucial. This is where CNC machining—specifically 5-axis CNC machining—comes into play.

Understanding CNC Machining

CNC (Computer Numerical Control) machining is a manufacturing process where a computer program controls the movement of machine tools to remove material from a workpiece and create the desired part. CNC machines are highly versatile and can perform a range of operations, such as milling, drilling, and turning, with exceptional precision.

In CNC machining, the toolpaths are programmed digitally, allowing for extremely fine control over the cutting process. This is particularly beneficial when working with materials like stainless steel, which require precise cutting, shaping, and finishing to achieve the desired properties.

However, not all CNC machines are the same. The level of precision and the ability to work with complex geometries depend on the number of axes the machine can operate on. 5-axis CNC machining is a step above traditional 3-axis machining, providing increased flexibility, precision, and efficiency in manufacturing high-precision parts.

The Role of 5-Axis CNC Machining in Stainless Steel Part Production

5-axis CNC machining refers to a machine's ability to move a tool or workpiece along five different axes simultaneously: three linear axes (X, Y, and Z) and two rotational axes (A and B). This capability allows for more complex movements and enables the machine to approach the workpiece from virtually any angle.

Here’s how 5-axis machining significantly enhances the production of high-precision stainless steel parts:

1. Enhanced Precision and Accuracy

With traditional 3-axis machining, parts can only be machined from three fixed directions—X, Y, and Z. This limits the types of geometries that can be created efficiently, especially when parts have complex angles or curved surfaces. 5-axis CNC machines can approach the workpiece from multiple angles, reducing the need to reposition the part multiple times. This results in greater accuracy, as it minimizes human error and reduces the potential for misalignment.

For stainless steel parts, where tight tolerances (sometimes within microns) are required, 5-axis machining ensures that each cut, drill, or finish is performed with precision.

2. Increased Complexity and Design Flexibility

5-axis CNC machining can handle parts with intricate features and complex geometries that would be impossible to machine efficiently with a 3-axis machine. For example, when manufacturing medical devices, aerospace components, or other high-precision stainless steel parts, the design often includes undercuts, curved surfaces, or multi-directional features. With 5-axis machining, these complex shapes can be fabricated in a single setup, reducing the need for multiple fixtures and tool changes.

This design flexibility allows engineers and designers to push the boundaries of what can be achieved in stainless steel part production, creating parts with more sophisticated shapes, internal cavities, and geometric complexity without compromising precision.

3. Reduced Setup Time and Increased Efficiency

In traditional machining, complex parts often need to be repositioned several times to complete various cuts or operations. Each repositioning introduces the potential for misalignment and additional time spent setting up and securing the part. With 5-axis machining, the part can be machined from all necessary angles in a single setup, dramatically reducing the time spent on fixture changes, repositioning, and retooling.

This increased efficiency translates into faster production times, reduced labor costs, and the ability to meet tight deadlines while maintaining high levels of precision.

4. Improved Surface Finish

Achieving a superior surface finish is critical in industries like aerospace, medical, and electronics, where even slight imperfections can impact the part's performance or appearance. The ability of 5-axis CNC machining to move the tool along multiple axes at different angles allows for a smoother, more consistent cut, resulting in a better surface finish.

Stainless steel, being a tough material, can present challenges when it comes to surface quality. However, with the proper tooling and techniques, 5-axis CNC machines can deliver a finish that meets or exceeds industry standards.

5. Reduction in Tool Wear

Stainless steel is known for its hardness, which can accelerate tool wear. Traditional 3-axis machines often require more tool changes or adjustments, leading to additional costs and longer production times. With 5-axis machining, the cutting tool can be positioned in a way that minimizes the wear on specific parts of the tool, extending tool life and improving overall cost-effectiveness.

By reducing the need for frequent tool replacements and minimizing tool wear, manufacturers can achieve more consistent results while lowering production costs.

The Process of CNC Machining Stainless Steel Parts with 5-Axis Technology

The process of machining high precision stainless steel parts using 5-axis CNC machines typically involves several steps:

1. Design and CAD Modeling

The first step in the process is designing the part using CAD (Computer-Aided Design) software. The part’s geometry is modeled in 3D, taking into account the desired features, tolerances, and material properties. Once the design is finalized, it is translated into a CAM (Computer-Aided Manufacturing) program that generates the toolpath for the CNC machine.

2. Material Selection and Preparation

High-quality stainless steel, such as 304, 316, or 17-4 PH, is selected based on the part’s requirements. The material is cut into rough blanks that are ready for machining.

3. CNC Setup

The rough stainless steel part is loaded into the 5-axis CNC machine. The machine is calibrated, and the toolpaths from the CAM program are loaded into the system. The part is secured in place, and the machine is ready to begin machining.

4. Machining Process

The 5-axis CNC machine begins the machining process, removing material from the stainless steel part using rotating cutting tools. The machine’s ability to manipulate the part in multiple directions allows it to create the desired features with high precision and minimal human intervention.

5. Inspection and Finishing

Once machining is complete, the part undergoes rigorous quality control. Precision measuring tools such as coordinate measuring machines (CMM) or laser scanners are used to inspect the part for dimensional accuracy and surface finish. If necessary, additional finishing operations (such as polishing or grinding) are performed to meet the required standards.

Applications of High Precision Stainless Steel Parts

The versatility and durability of stainless steel, combined with the precision of 5-axis CNC machining, make it an ideal solution for creating parts across a wide range of industries:

• Aerospace: Aircraft engine components, structural elements, and turbine blades.

• Medical Devices: Surgical tools, implants, diagnostic equipment, and prosthetics.

• Automotive: Exhaust components, suspension parts, engine components, and fuel systems.

• Electronics: Housings, connectors, and enclosures for electronic devices.

• Defense and Military: Weapon components, armor plating, and high-performance parts for defense systems.
