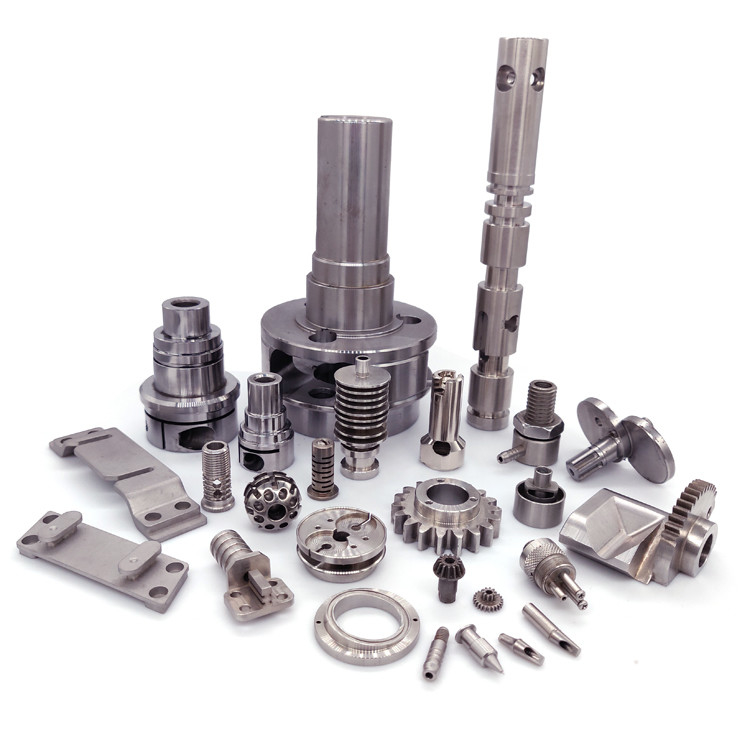

How Custom CNC Titanium Parts Are Manufactured

The process of creating custom CNC titanium parts involves several key steps, all of which ensure that the final product meets your exact specifications. Here’s a closer look at how CNC machining works for titanium:

• Design and CAD Modeling: The process starts with creating a Computer-Aided Design (CAD) model of the part. The design can be as simple or as complex as needed, whether it’s a basic round component or a highly intricate part with tight tolerances. CAD allows for precision design that aligns with exact requirements.

• Programming the CNC Machine: After the design is finalized, the next step is programming the CNC machine. Computer-Aided Manufacturing (CAM) software is used to generate the toolpaths and machining instructions needed for the CNC machine to fabricate the titanium part. This step takes into account factors such as cutting speeds, tool selection, and material properties.

• Material Selection: Titanium comes in various grades, such as Grade 5 (Ti-6Al-4V) and Grade 23, each suited for specific applications. The right grade of titanium is selected based on the mechanical, thermal, and chemical requirements of the final product.

• CNC Machining Process: Using CNC lathes, mills, or multi-axis machines, the titanium part is shaped according to the program. The material is carefully cut, drilled, milled, or turned with high precision to produce the desired form. Titanium’s toughness makes it more difficult to machine compared to other metals, but modern CNC technology ensures that it is processed efficiently and accurately.

• Post-Processing: Once the part is machined, it may undergo post-processing steps such as polishing, heat treatment, anodizing, or coating to enhance its appearance, strength, or resistance to corrosion. These finishing processes help achieve the desired mechanical properties and aesthetics.

• Quality Control and Inspection: Rigorous quality checks are performed to ensure that the titanium parts meet industry standards. This includes dimensional inspections, surface finish evaluations, and sometimes stress testing, depending on the application.

• Delivery: Finally, the custom CNC titanium parts are packaged and delivered to the customer, ready for integration into their end products.

Benefits of Using Custom CNC Titanium Parts

• High Precision and Accuracy: CNC machines are capable of producing titanium parts with exceptional precision, even for complex designs. Tolerances can be as tight as 0.001 inches, ensuring that each part fits perfectly into its intended application.

• Complex Geometries: CNC machining allows for the creation of intricate geometries and multi-axis designs that would be difficult or impossible to achieve with traditional methods. Custom titanium parts can have features such as precise holes, slots, grooves, and other detailed aspects.

• Improved Production Efficiency: CNC machines can operate 24/7, producing titanium parts with minimal supervision. This automation ensures faster turnaround times, making it easier to meet tight production schedules.

• Cost-Effective for Custom Runs: While titanium is an expensive material, CNC machining helps reduce waste and improve material utilization, which ultimately lowers costs. Additionally, CNC machining allows for the production of small to medium-sized custom runs with a high degree of consistency and minimal rework.

• Custom Finishes: Custom CNC titanium parts can be finished with various surface treatments, such as anodizing, sandblasting, or polishing, to meet specific aesthetic or functional requirements. These finishes can improve both the appearance and durability of the parts.

• Strength and Durability: Titanium parts manufactured using CNC machining offer the strength and durability required for demanding applications, ensuring a long service life and reliable performance.

Applications of Custom CNC Titanium Parts

• Aerospace: Titanium is widely used in the aerospace industry for components such as turbine blades, aircraft frames, and fasteners. The strength-to-weight ratio of titanium makes it essential for improving fuel efficiency and reducing overall aircraft weight.

• Medical Devices: From surgical implants to dental devices, titanium’s biocompatibility makes it ideal for medical applications. Custom titanium parts are precision-machined to meet strict medical standards for safety and functionality.

• Automotive: High-performance vehicles require lightweight and durable components, which is why titanium is commonly used for parts such as engine components, exhaust systems, and suspension elements. Custom CNC machining ensures these parts are made to the exact specifications needed for optimal performance.

• Defense and Military: Titanium’s high strength and resistance to corrosion make it essential for military applications such as weapons, armor, and components for military aircraft and vehicles.

• Marine: Titanium is used in marine environments for parts such as propellers, pumps, and valves, where corrosion resistance is a critical factor. Custom CNC titanium parts are built to withstand harsh sea conditions while maintaining functionality.

• Energy and Power Generation: Titanium parts are used in energy sectors for equipment such as turbines, heat exchangers, and pressure vessels. The material’s ability to perform under high temperatures and in corrosive environments makes it indispensable for power generation systems.

Conclusion

For industries that demand high-performance, durable, and lightweight parts, Custom CNC Titanium Parts provide the ideal solution. By combining the strength and corrosion resistance of titanium with the precision and efficiency of CNC machining, manufacturers can create custom components that meet exacting specifications. Whether you are in aerospace, medical, automotive, or defense, CNC titanium parts offer exceptional value and reliability.

If you are looking to enhance the quality, performance, and durability of your products, consider working with a trusted CNC machining provider to produce custom CNC titanium parts that will give your business the competitive edge it needs.
