In today’s fast-paced product development environment, speed and precision are everything. Companies must transform ideas into functional prototypes quickly to stay ahead of the competition. One of the most effective methods to achieve this is through CNC machining of aluminum parts for rapid prototyping. This powerful combination offers a unique balance of accuracy, material performance, and turnaround time, making it an ideal choice for engineers and product designers across industries.

What Is CNC Machining?

CNC machining (Computer Numerical Control machining) is a subtractive manufacturing process where pre-programmed software controls machine tools to precisely remove material from a solid block—also known as a billet. The result is a finished part that matches the digital design with exceptional accuracy and repeatability.

CNC machining is well-suited for rapid prototyping because it allows for fast iteration, supports complex geometries, and delivers functional, production-quality parts—even in single units or small batches.

Why Use Aluminum for Rapid Prototyping?

Aluminum is one of the most popular materials for CNC prototyping due to its excellent machinability and favorable properties.

Key Benefits of Aluminum:

• Lightweight: Ideal for parts where weight is a concern (e.g., aerospace, automotive).

• High strength-to-weight ratio: Strong yet manageable for early-stage testing.

• Corrosion resistant: Ensures durability without requiring surface coatings.

• Excellent machinability: Allows for faster production with less tool wear.

• Thermal and electrical conductivity: Suitable for heat sinks and electronic housings.

• Recyclable and cost-effective: Supports sustainable, budget-conscious development.

Popular aluminum grades for CNC rapid prototyping include:

• 6061-T6: General-purpose, great strength and corrosion resistance.

• 7075: Higher strength, often used in aerospace and structural applications.

• 2024: Good fatigue resistance, used in aerospace and automotive.

• 5052: Excellent corrosion resistance, especially in marine environments.

Advantages of CNC Machining Aluminum Parts for Rapid Prototyping

1. Fast Turnaround

CNC machining can produce functional aluminum prototypes in as little as 24–72 hours, enabling quick design validation and product testing.

2. High Dimensional Accuracy

Precision levels of ±0.005 mm are achievable, making CNC ideal for parts with tight tolerances or assembly requirements.

3. Functional Testing

Unlike 3D-printed plastic models, CNC-machined aluminum parts offer production-level mechanical performance, allowing realistic functional and environmental testing.

4. Material Versatility

Multiple aluminum alloys are available for testing different material properties in the prototyping phase.

5. Design Flexibility

Complex features—like deep pockets, threads, fine details, and undercuts—can be machined quickly, especially with 4-axis or 5-axis CNC machines.

6. Scalability

Once the prototype is approved, the same CNC process and setup can be scaled for small-batch or even production-level manufacturing with minimal modifications.

Common Applications

CNC machining of aluminum parts for rapid prototyping is widely used in:

• Aerospace: Brackets, housings, and lightweight structural components

• Automotive: Engine prototypes, gearbox housings, and suspension parts

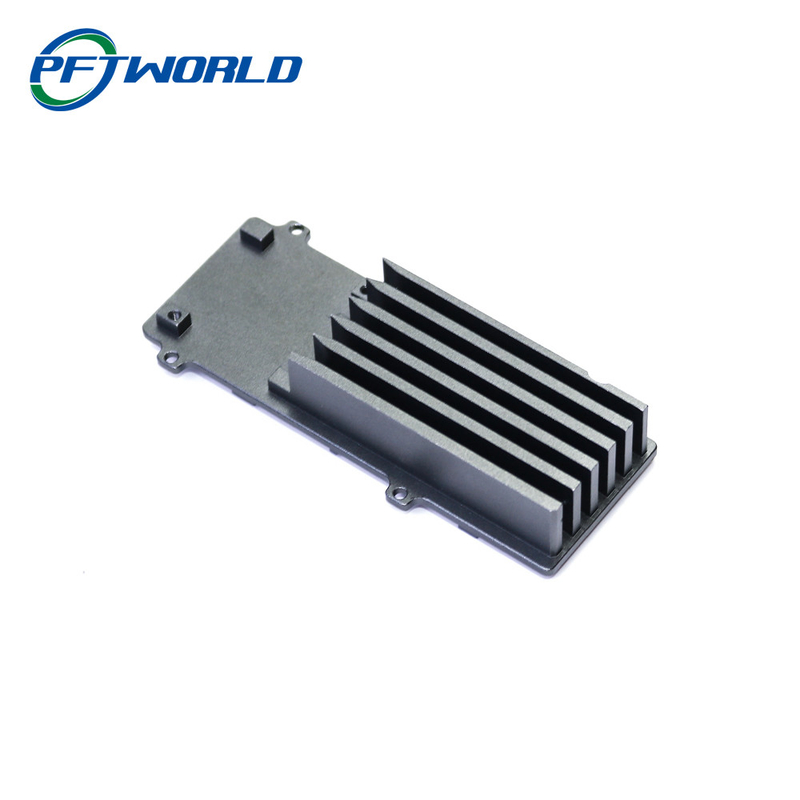

• Consumer Electronics: Enclosures, heat sinks, and frames

• Medical Devices: Surgical tool components and equipment housings

• Robotics: Armatures, joints, and motion control parts

• Industrial Equipment: Tooling, fixtures, and machine parts
